Wax Lead Free Master Mixing Valve

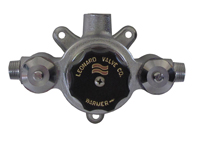

LF Thermostatic Mixing Valve - LV-20-LF
ECO-MIX ™
Thermostatic Water Mixing Valve with 2.5-25 GPM (9.5-95 l/min) flow capacity. 3/4” inlets, 3/4” outlet (19mm x 19mm). Integral combination checkstops with wall support. 125 PSI (8.6 BAR) maximum operating pressure. Copper encapsulated thermostatic assembly with Teflon coated stainless steel shuttle. Locking temperature regulating handle, Internal parts of stainless steel. Integral wall support for easy mounting. Rough Bronze Finish
This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
Repair Kits
VALVE REPAIR KIT - KIT R/XL32
CHECK REPAIR KIT - KIT 4/M20
CHECK REPAIR KIT - KIT 4/M20
Downloads
Specification
| Inlets | 3/4" |
| Maximum Flow(GPM) | 25 |
| Minimum Flow(GPM) | 1 |
| Outlet | 3/4" |
| Overall Depth | 6" |
| Overall Height | 6" |
| Overall Width | 7.5" |
Options
| Ball valve and Dial Thermometer | BDT |
| Chrome Plated Finish | CP |
| Inlet Thermometers | IT |
| Less Wall Support | LWS |
