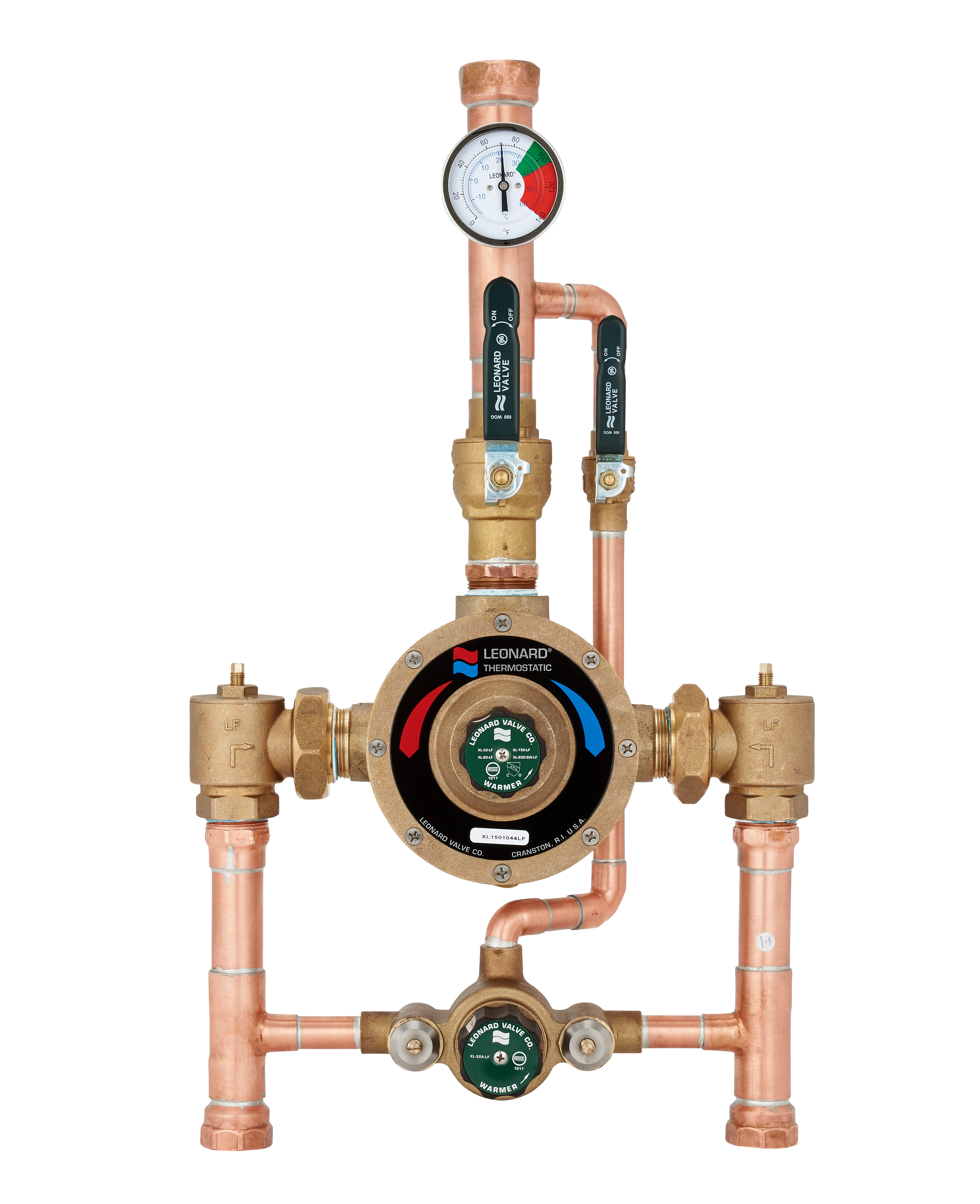

Paraffin Wax Technology Master Mixing Valve with Strut Assembly
Lead Free HL Mixing Valve - XL-15032-LF-BDT
• High Low Dual Valve Thermostatic Water Mixing Valve
with 1 GPM (3.8 l/min) minimum flow capacity
with 1 GPM (3.8 l/min) minimum flow capacity
• 1-1/4” inlets, 1-1/2” outlet (32mm x 38 mm)
• Outlet dial thermometer and ball valves
• Integral combination checkstops
• 125 PSI (8.6 BAR) maximum operating pressure
• Copper encapsulated thermostatic assembly
with polished stainless steel shuttle
• Locking temperature regulating handle set for 120°F(49°C)*
• Temperature adjustment range, 95-135ºF (35-57ºC) **
• Internal parts of lead free bronze, stainless steel
• Integral wall support for easy mounting
• Rough Bronze Finish
Downloads
Specification
| Inlets | 1 1/4" |
| Minimum Flow(GPM) | 1 |
| Outlet | 1 1/2" |
Options
| Chrome Plated Finish | CP |
| Inlet Thermometers | IT |
| Less Wall Support | LWS |
| Test Connection | TC |
