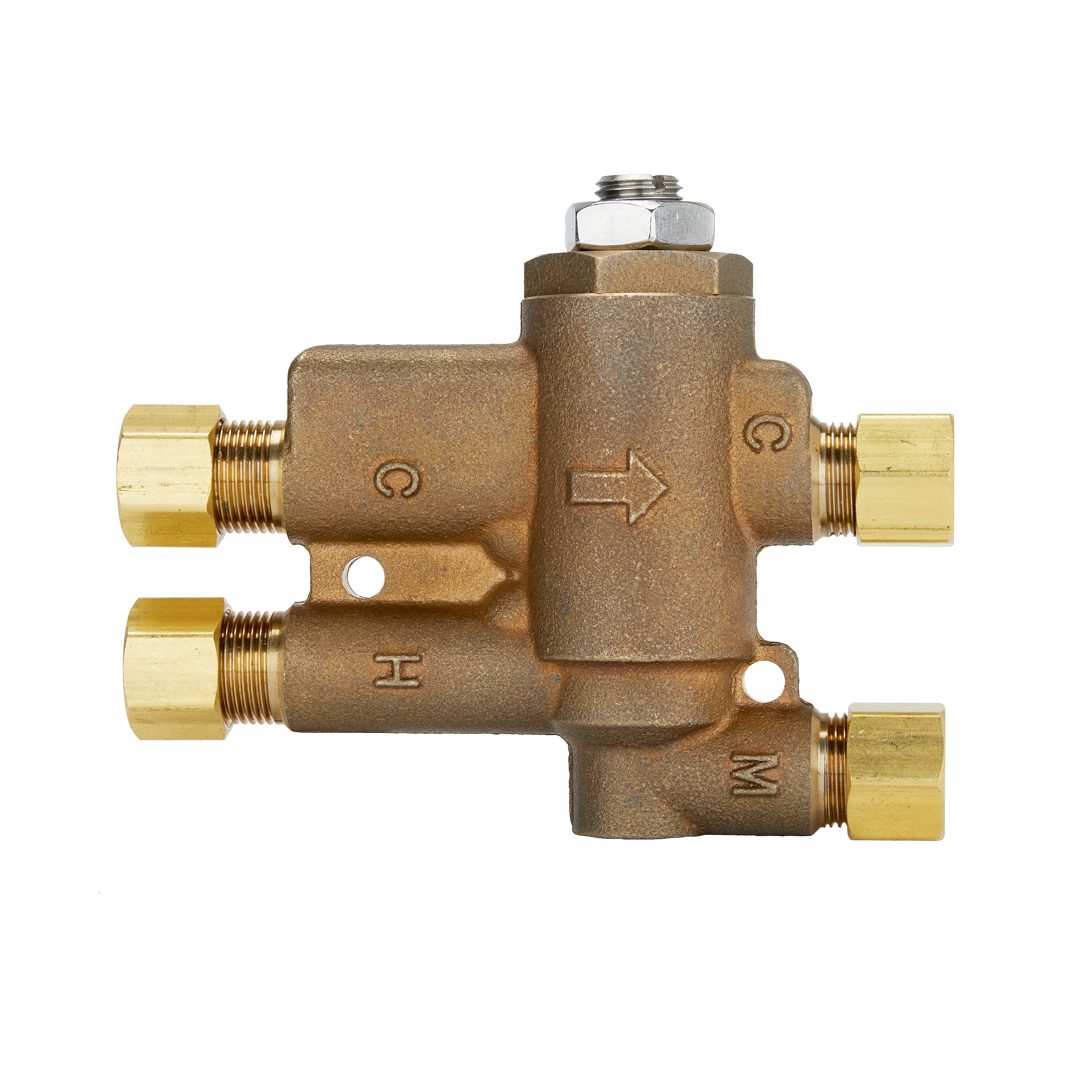

Four Port Point of Use - Model 170D-LF

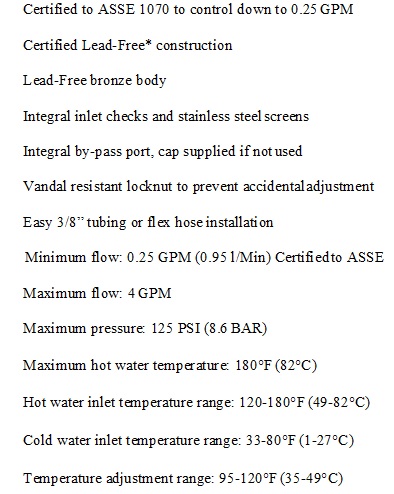

- Certified to ASSE 1070 standards
- Easy 3/8” tubing or flex hose installation
- Integral bypass port (cap supplied if not used)
- Integral inlet checks and stainless-steel screens
- Lead-free bronze body
- Certified lead-free construction
- Minimum flow: 0.25 GPM (0.945 L)
- Maximum flow: 4.0 GPM (15.14 L)
- Maximum pressure: 125 PSI (8.6 bar)
- Hot water inlet temperature range: 120 °F – 180 °F (40 °C – 82 °C)
- Cold water inlet temperature range: 33 °F – 80 °F (1 °C – 27 °C)
- Temperature adjustment range: 95 °F – 120 °F (35 °C – 49 °C)
- Vandal-resistant locknut to prevent accidental adjustment
- Optional stainless-steel, locking cabinet for extra protection
Downloads
Options
| Chrome Plated Finish | CP |
| Stainless Steel Exposed Cabinet | STSTL-EXP |
| Stainless Steel Recessed Cabinet | STSTL-REC |
