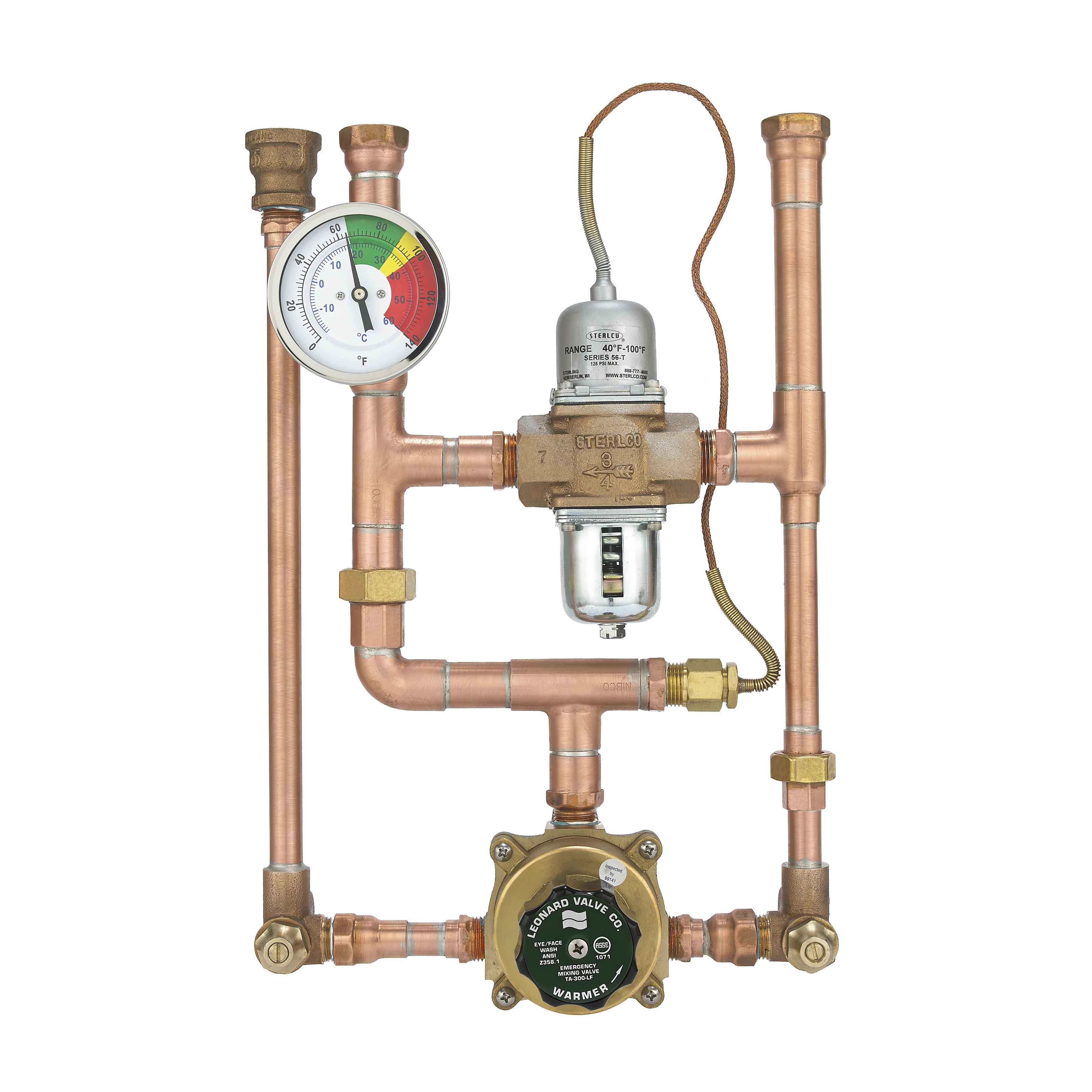

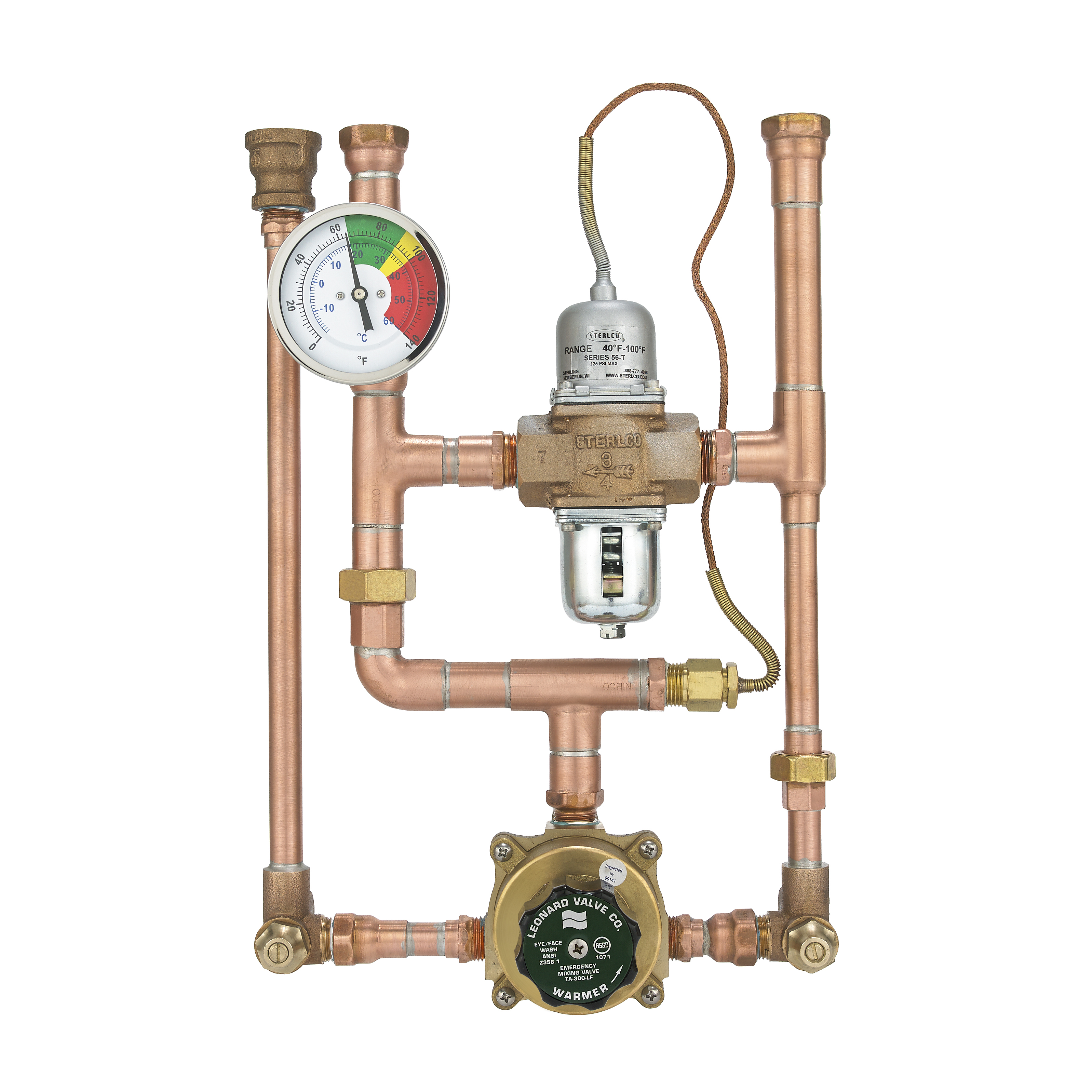

Emergency Mixing Valve System with Temperature Override Protection

Eye Wash - TA-350-LF

DURA-trol® solid bimetal thermostat directly linked to valve porting DURA-trol® is highly responsive and cannot be damaged by extremes in temperature Primary valve can be set to the correct temperature for the application. Locking temperature regulator to prevent accidental movement set for 85ºF (29ºC) Primary mixing valve will close down on failure of cold water supply. Primary Mixing Valve with special internal cold water bypass capable of 4 GPM (15 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply. Adjustable high temperature limit stop set for 90ºF (32ºC) Dial thermometer (range 0 to 140°F, -10 to 60°C) Straight checkstops on inlets Secondary Thermostatic Control factory locked @ 90°F, 32°C(adjustable from 40°F to 100°F, 4°C to 32°C) to allow cold water to enter the outlet side of the primary mixing valve. Rough bronze finish Hot Water Requirements
Repair Kits
VALVE REPAIR KIT - KIT R/TA/M
CHECK REPAIR KIT - KIT 4/LVC
Specification
Inlets 3/4"
Maximum Flow(GPM) 10
Minimum Flow(GPM) 2
Outlet 3/4"
Weight (pounds) 20
Options
Inlet Thermometers IT
Megatron Nucleus Installed
