Digital Mixing Valve with integral RTD Sensor

Self-Cleaning, daily shuttle sweep keeps shuttle free of debris

Valve controls at times of no use: 0.0 GPM*

User programmable set point range between 65°F and 180°F

Displays outlet temperature

Controls water temperature to +/- 2°F during times of low/no system demand

Controls water temperature to +/- 2°F in accordance with ASSE 1017

Automatic Hot / Cold Water shutoff upon cold / hot water inlet supply failure

Alerts user when unit requires maintenance

Simple/intuitive user commissioning and setup

3" female NPT inlets, 3" female NPT outlet (76.2mm X 76.2mm)

Maximum operating pressure: 200 PSIG (1379 KPA)

UL Listed control box and 120V plug in power supply with 6’ cord

Available option: Backup Uninterruptable Power Supply. in the event of primary power loss (two hours run time)

*when properly installed near the hot water source with a continuously operating recirculation pump at 5 GPM.

Proton Plus - PPV-200-LF-2PS

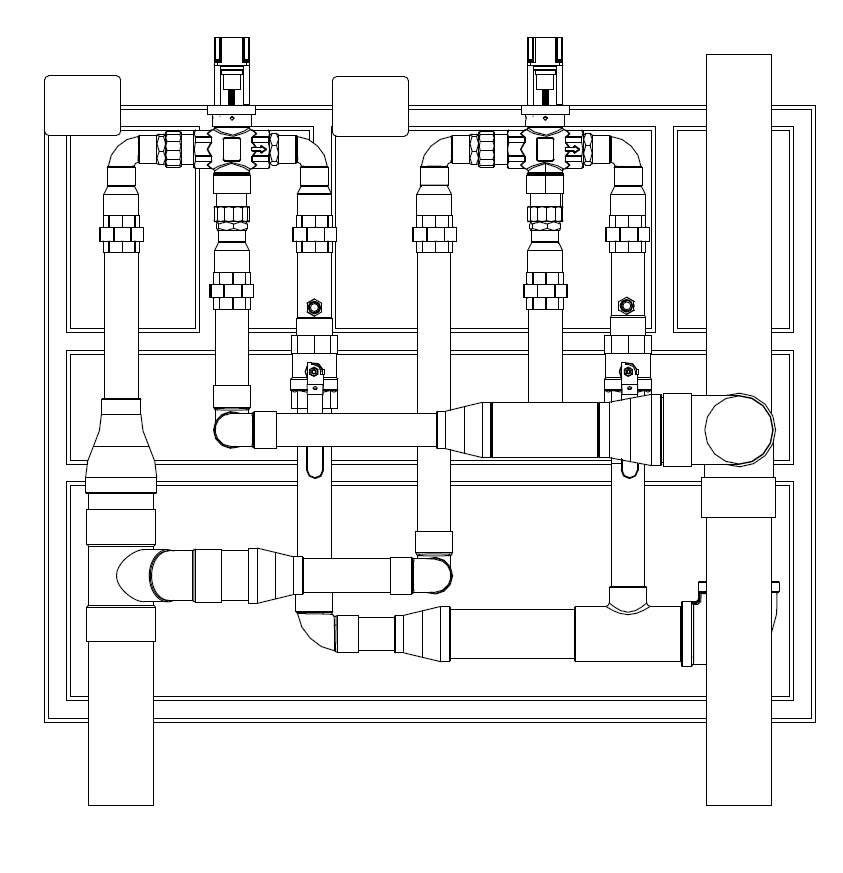

High Flow Multi- Digital Valve Configuration

Proton Plus - PPV-200-LF-2PS
